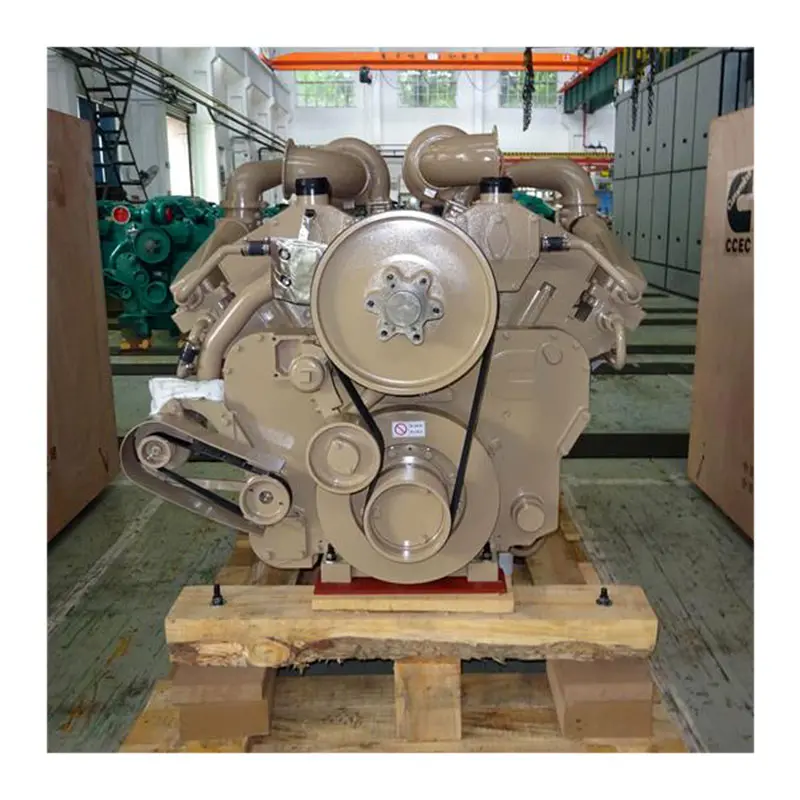

Cummins KTA38 Features
■ Head and Valve
4 valves per cylinder, Optimize the mixed level which lead to an excellent fuel consumption rate and emission performance. High quality alloy cast iron, one cylinder on head, single camshaft, and a special design outline for better reliability and durability.
■ Crankshaft and Rod
Robust and fully balanced crankshaft design for a more steady rotation and higher strength. Steel piston crown with oil gallery and aluminum skirts for better durability and low oil consumption.
■ Lubrication System
Great flux gear pump, lube oil filter and by-pass oil filter can separate impurities above 10um effectively. Keep the lubrication system in good state and make the engine more reliable.
■ Cooling System
Great water pump and great flux channel design provide effective cooling. Spin-in water filter makes the coolant clean and keeps it in normal acidity.
■ Exhaust System (After-cooled)
Advanced Holset turbocharger and water-air after cooler technology, pulse exhaust manifold, reduce exhaust temperature, provides excellent fuel consumption, and emission performance.
Technical Specification
| Engine Model | KTA38-C | Fuel Consumption at Rated Speed | 59gal/hr / 224 l/hr |
| Rating Type | Continuous | Approximate Fuel Flow to Pump | 105gal/hr / 397 l/hr |
| Rated Engine Power | 1400hp / 1045kW | Intake Manifold Pressure | 54in. Hg / 183kPa |
| Rated Engine Speed | 1500rpm/1800rpm/2100rpm | Intake Air Flow | 2599 cfm / 1227 l/sce |
| Peak Engine Torque@ 1500 rpm | 3842 lb. H ft. / 5210 NHm | Heat Rejection to Ambient | 4440 BTU/min / 78 kW |
| Cylinders | 12 | Size-Engine Only | 2600*1500*2000mm |
| Aspiration | Turbocharged & Aftercooled | Weight (Dry) – Engine Only | 4300kg |
| Compression Ratio | 13.9:1 | Minimum Idle Speed Setting | 625-675rpm |
| Piston Speed | 1870 ft/min / 9.5 m/sec | Normal Idle Speed Variation | ±25rpm |
| Displacement | 38L | High Idle Speed Range Minimum | 1815rpm |
| Bore*Stroke | 159*159mm | High Idle Speed Range Maximum | 2016rpm |
| Fuel System | PT pump | Standard Thermostat Operating Range (Start to Open – Full Open) | 82°C-95°C |
