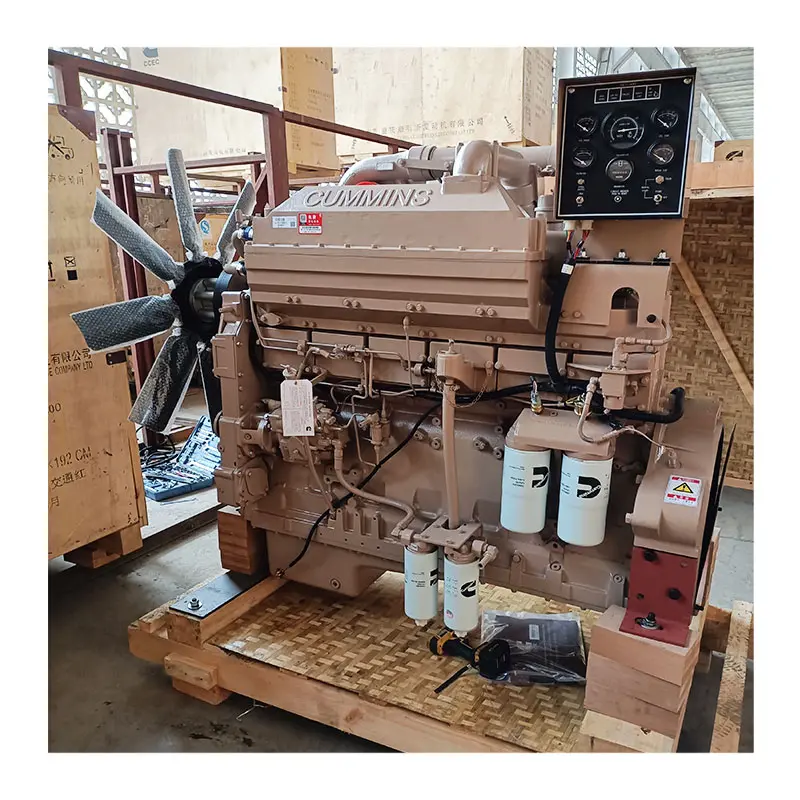

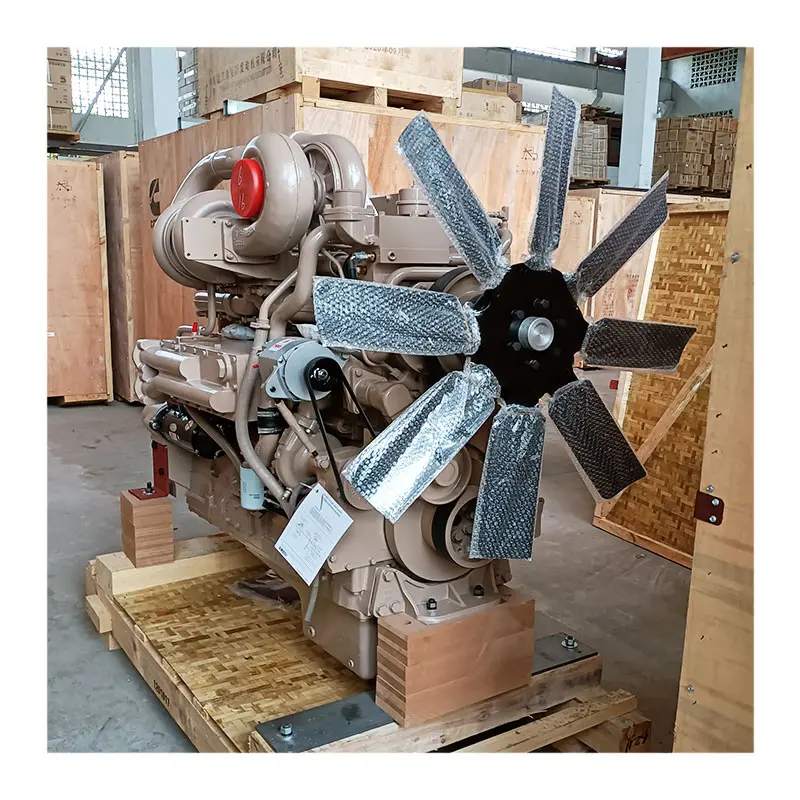

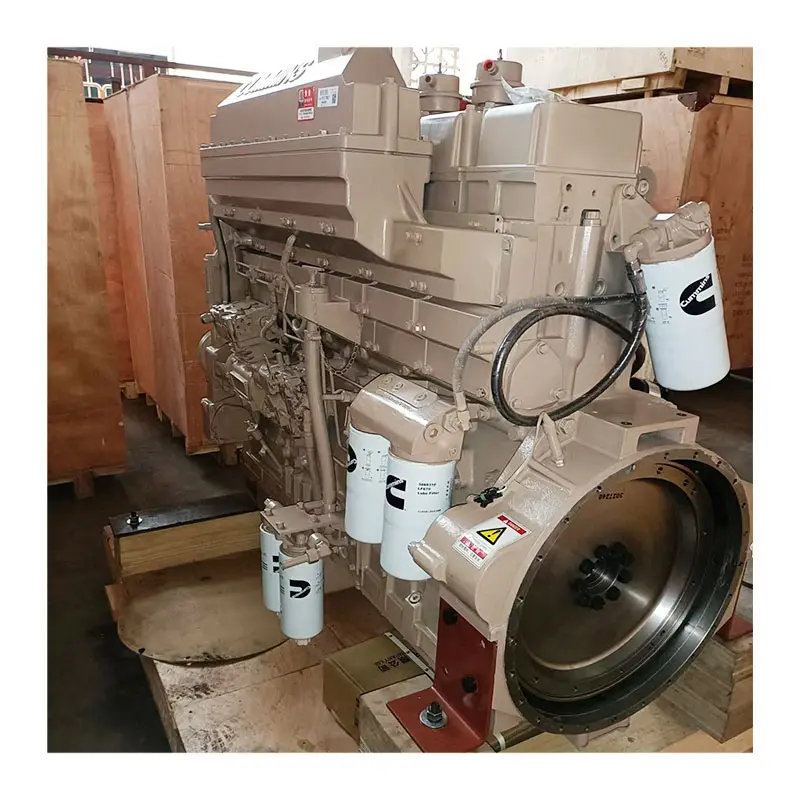

Cummins KTA19 Features
■ Cylinder Block
High-quality alloy cast iron for the rigidity performance and lower vibration and noise. Wet and replaceable cylinder liners for better heat rejection performance and easier replacement.
■ Head and Valve
4 valves per cylinder, Optimize the mixed level which lead to an excellent fuel consumption rate and emission performance. High quality alloy cast iron, one cylinder on head, single camshaft and special designed outline for better reliability and durability.
■ Fuel System
Cummins’ unique PT with fixture and Step Timing control for precise fuel injection make the fuel injection pressure above 120Mpa, which leads to an excellent fuel consumption rate and emission performance. Check valve in fuel tube improves reliability.
■ Cooling System
Great water pump and great flux channel design provide effective cooling. A spin-in water filter makes the coolant clean and keeps it in normal acidity.
■ Exhaust System (After-cooled)
Advanced Holset turbocharger and water-air aftercooler technology and pulse exhaust manifolds reduce exhaust temperature and provide excellent fuel consumption and emission performance.
Technical Specification
| Engine Model | KTTA19-C700 | Fuel Consumption at Rated Speed | 24 gal/hr / 90 l/hr |
| Rating Type | Continuous | Approximate Fuel Flow to Pump | 71 gal/hr / 270 l/hr |
| Rated Engine Power | 700 BHP / 522 kWm | Intake Manifold Pressure | 36in. Hg / 122 kPa |
| Rated Engine Speed | 1800rpm/2100rpm | Intake Air Flow | 1101 cfm / 520 l/sec |
| Peak Engine Torque@ 1500 rpm | 1513 lb. H ft. / 2052 NHm | Heat Rejection to Ambient | 2618 BTU/min / 46 kW |
| Cylinders | 6 | Size-Engine Only | 2000*1500*1900mm |
| Aspiration | Turbocharged & Aftercooled | Weight (Dry) – Engine Only | 1725kg |
| Compression Ratio | 15.5:1 | Minimum Idle Speed Setting | 650-700rpm |
| Piston Speed | 1870 ft/min / 9.5 m/sec | Normal Idle Speed Variation | ±25rpm |
| Displacement | 19L | High Idle Speed Range Minimum | 1962rpm |
| Bore*Stroke | 159*159mm | High Idle Speed Range Maximum | 2106rpm |
| Fuel System | PT pump | Standard Thermostat Operating Range (Start to Open – Full Open) |
82°C-94°C |
